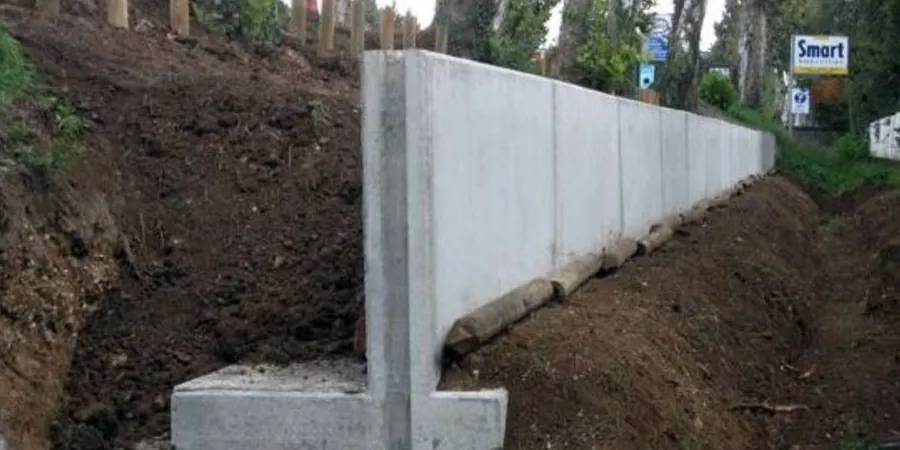

Retaining Wall Design in Vancouver: NBCC Compliance and Soil Retention

Knowledgeable. Thorough. Resourceful.

LEARN MORE

Vancouver's topography demands retaining structures that work with, not against, the landscape. The combination of steep north shore slopes, marine clay deposits in the Fraser delta, and glacial till across the city means every retaining wall design must start with a thorough geotechnical profile under NBCC 2020 Part 4. Our team approaches wall design as a site-specific problem: a wall in West Vancouver's bedrock slopes has almost nothing in common with one retaining saturated silts near False Creek. Both require the same code compliance under CSA A23.3 for concrete and CSA S6 for highway loading where applicable, but the soil-structure interaction changes completely. We pair our wall designs with in-situ permeability testing when groundwater control is critical, and slope stability analysis for walls exceeding 1.2 meters in height or located near property lines.

A retaining wall is a structural element and a drainage system in one—either function fails and both collapse.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›
VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›
VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›
VIEW ALL ROADWAY ›

Methodology and scope

Consider the contrast between a Kitsilano infill lot and a retaining wall on the Burnaby Mountain escarpment. Kitsilano typically sits on sand and silt over glacial till; the wall design focuses on surcharge from adjacent structures and vibration sensitivity during excavation. Burnaby Mountain presents weathered till with varying cohesion and boulder content, requiring careful assessment of sliding and overturning moment arms. A cantilever wall works well in Kitsilano's moderate cuts, but Burnaby's taller exposures often justify a mechanically stabilized earth (MSE) system or anchored soldier pile wall. Our designs incorporate the appropriate earth pressure theory—Rankine for simple geometries, Coulomb when wall friction and backslope angle matter—and we validate assumptions with triaxial testing on undisturbed samples to get drained and undrained strength parameters. Wall dimensions, reinforcement schedules, and drainage details are then developed using limit states design per CSA A23.3, with global factors of safety against bearing failure and global instability checked against the NBCC geotechnical requirements.
Retaining Wall Design in Vancouver: NBCC Compliance and Soil Retention
Technical reference — Vancouver

Local considerations

Vancouver's development history left a legacy of undocumented fill and altered drainage patterns that complicate retaining wall projects. Much of the downtown peninsula and False Creek flats were once tidal marsh or water, later infilled with material of inconsistent quality. A wall excavation in these areas can encounter buried organic layers, old timber piles, or perched groundwater that standard geotechnical reports miss. The rainfall regime—averaging 1,153 mm annually with concentrated winter events—means hydrostatic pressure behind walls is often the dominant load case, not earth pressure. Our design process mandates a drainage assessment for every wall: we model worst-case groundwater scenarios using Vancouver's 1-in-50-year storm data, specify filter fabrics and weep hole patterns, and verify that the drainage system can handle sustained flow without clogging in the silty native soils common across the Lower Mainland.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.vip

Applicable standards

NBCC 2020 Part 4 Structural Design, CSA A23.3-19 Design of Concrete Structures, CSA S6-19 Canadian Highway Bridge Design Code (where applicable), ASTM D448 Standard Classification for Sizes of Aggregate, BC Building Code 2018

Technical parameters

ParameterTypical value
Design code for concrete wallsCSA A23.3-19
Seismic design referenceNBCC 2020, Vancouver Site Class C/D/E
Typical retained height range0.9 m to 8.5 m
Earth pressure theories appliedRankine, Coulomb, log-spiral
Global FoS against sliding≥ 1.5 (static), ≥ 1.1 (seismic)
Backfill drainage specificationPerforated pipe + clean gravel (ASTM D448 #57)
Wall types designedCantilever, MSE, soldier pile, gravity, anchored
Subsurface investigation depth1.5× wall height below footing base

Frequently asked questions

What retaining wall height triggers a building permit in Vancouver?

Under the Vancouver Building Bylaw, retaining walls over 1.22 meters (4 feet) in height generally require a building permit and professional engineering design. Walls supporting surcharge from buildings or public property may require a permit at lower heights. The City of Vancouver also requires a geotechnical report for walls exceeding 1.5 meters or in areas with known slope stability concerns.

How does Vancouver's seismic hazard affect retaining wall design?

Vancouver's seismic hazard, governed by NBCC 2020 spectral acceleration values, requires retaining walls to be designed for pseudo-static seismic earth pressure using the Mononobe-Okabe method or equivalent. The peak ground acceleration used depends on the site class (C, D, or E), which varies across Vancouver from firm glacial till to softer deltaic soils. Walls taller than 3 meters typically require a site-specific seismic hazard assessment.

What is the typical cost for retaining wall design in Vancouver?

Professional retaining wall design fees in Vancouver range from CA$1,460 for a straightforward residential garden wall under 1.5 meters to CA$5,580 for complex commercial walls requiring full structural calculations, drainage design, and permit coordination. The final fee depends on wall height, site access constraints, and whether supplementary geotechnical investigation is needed.

How long does retaining wall design and permit approval take in Vancouver?

Design and documentation typically take 2 to 4 weeks depending on project complexity. City of Vancouver permit review times vary: simple residential walls may be processed in 3 to 6 weeks, while larger walls requiring structural and geotechnical peer review can take 8 to 12 weeks. Early engagement with the geotechnical engineer helps avoid re-submission delays.

What soil conditions in Vancouver are most problematic for retaining walls?

The most challenging conditions in Vancouver include the marine clay deposits along the Fraser River delta, which have low shear strength and high compressibility; uncontrolled historical fill in areas like False Creek and the downtown waterfront; and colluvial soils on the North Shore slopes that can contain large boulders and variable groundwater. Each requires a tailored earth pressure model and often a more solid drainage system than standard designs.
